GIANT TCR ADVANCED DISC 1 KOM 2023
GUNNING FOR THE RACE WIN OR DIGGING DEEP FOR A PR, THIS COMPOSITE ROAD RACING BIKE GIVES YOU THE SPEED, EFFICIENCY AND CONTROL TO PUSH IT TO THE LIMIT, AND THEN A LITTLE BIT MORE.
KEY PERFORMANCE FACTORS
Class-leading efficiency
Combining best-in-class stiffness-to-weight with strategically placed aero tube shaping, this frameset is engineered for faster climbing, explosive acceleration and unyielding pedaling stiffness for race-winning performance.
Advanced aerodynamics
This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analyzed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.
Total control
Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and new thru-axles boost stiffness and improve overall handling, while added frame and fork clearance allows for larger diameter tires up to 32mm.
| XS | 157 cm - 169 cm |
| S | 165 cm - 175 cm |
| M | 171 cm - 181 cm |
| ML | 177 cm - 187 cm |
| L | 183 cm - 193 cm |
| XL | 189 cm - 199 cm |

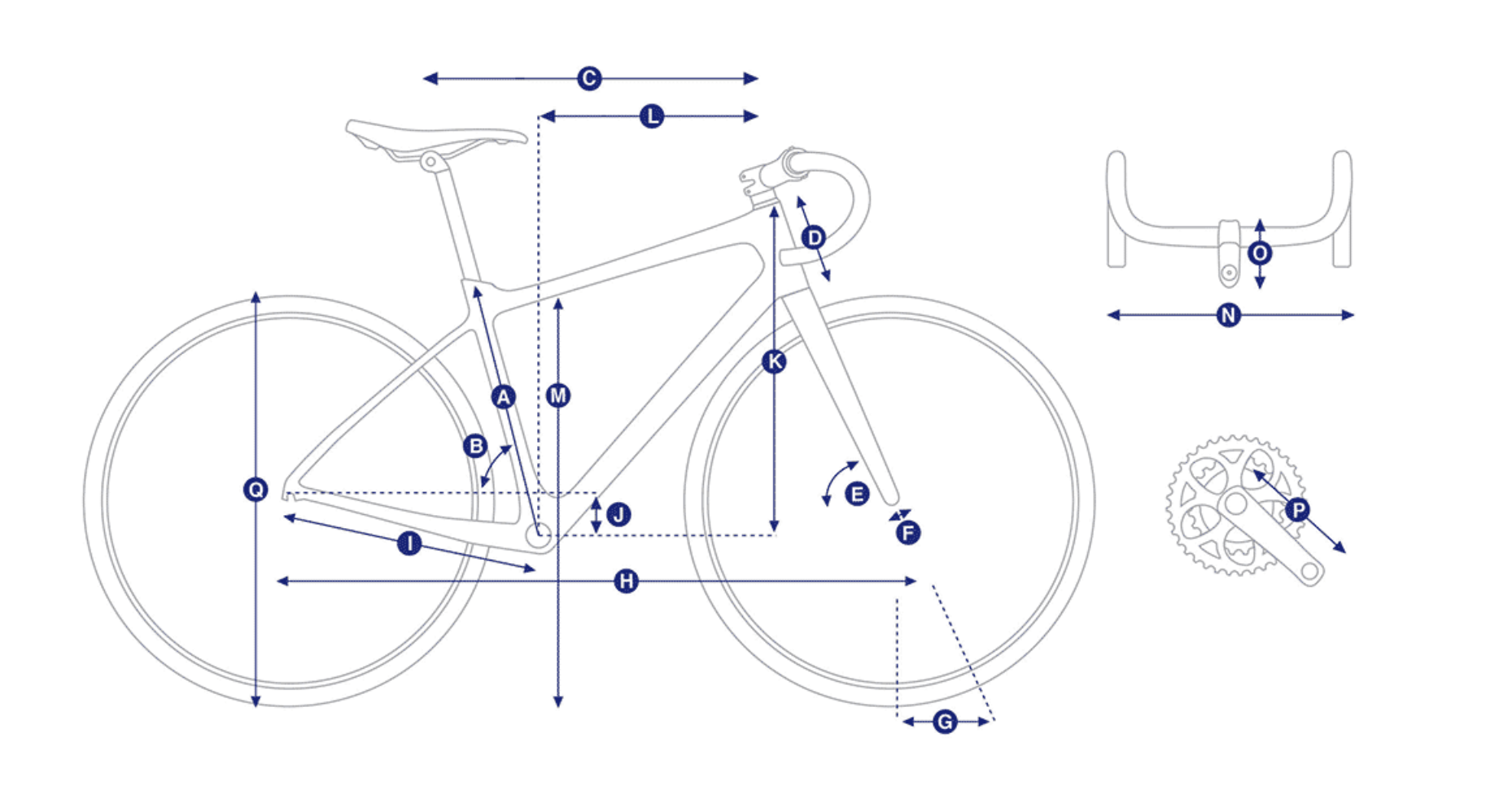

| XS | S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH (mm) | 425 | 445 | 470 | 500 | 530 | 560 |
| B | SEAT TUBE ANGLE | 74.5° | 74.0° | 73.5° | 73.0° | 73.0° | 72.5° |
| C | TOP TUBE LENGTH (mm) | 520 | 535 | 550 | 565 | 580 | 600 |
| D | HEAD TUBE LENGTH (mm) | 120 | 130 | 145 | 165 | 185 | 200 |
| E | HEAD TUBE ANGLE | 71.0° | 72.3° | 73.0° | 73.0° | 73.0° | 73.0° |
| F | FORK RAKE (mm) | 45 | 45 | 45 | 45 | 45 | 45 |
| G | TRAIL (mm) | 72.1 | 64 | 59.2 | 59.2 | 59.2 | 59.2 |
| H | WHEELBASE (mm) | 976 | 977 | 980 | 991 | 1006 | 1020 |
| I | CHAIN STAY LENGTH (mm) | 405 | 405 | 405 | 405 | 405 | 405 |
| J | BOTTOM BRACKET DROP (mm) | 72 | 70 | 70 | 67 | 67 | 67 |
| K | STACK (mm) | 517 | 528 | 545 | 562 | 581 | 596 |
| L | REACH (mm) | 376 | 383 | 388 | 393 | 402 | 412 |
| M | STAND OVER HEIGHT (mm) | 706 | 725 | 747 | 773 | 800 | 816 |
| N | HANDLEBAR WIDTH (mm) | 400 | 400 | 420 | 420 | 440 | 440 |
| O | STEM LENGTH (mm) | 80 | 90 | 100 | 110 | 110 | 120 |
| P | CRANK LENGTH (mm) | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Q | WHEEL SIZE | 700C | 700C | 700C | 700C | 700C | 700C |
| Frame | Advanced-Grade Composite, disc |
| Fork | Advanced-Grade Composite, full-composite OverDrive steerer, disc |
| Shock | N/A |

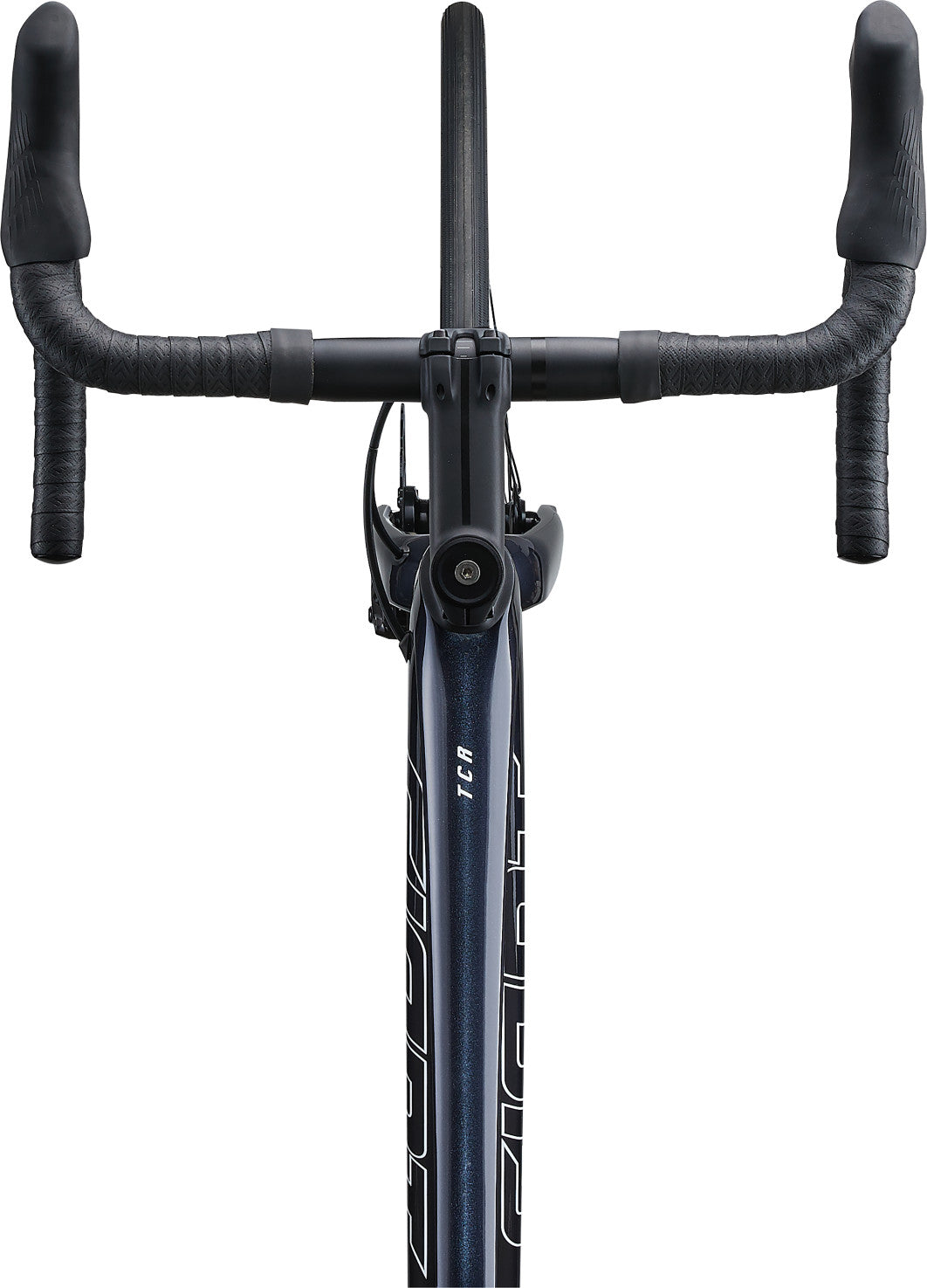

| Handlebar | Giant Contact XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm |
| Grips | Stratus Lite 2.0 |
| Stem | Giant Contact XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm |
| Seatpost | Giant Variant, composite, -5/+15mm offset |
| Saddle | Giant Approach |
| Pedals | N/A |

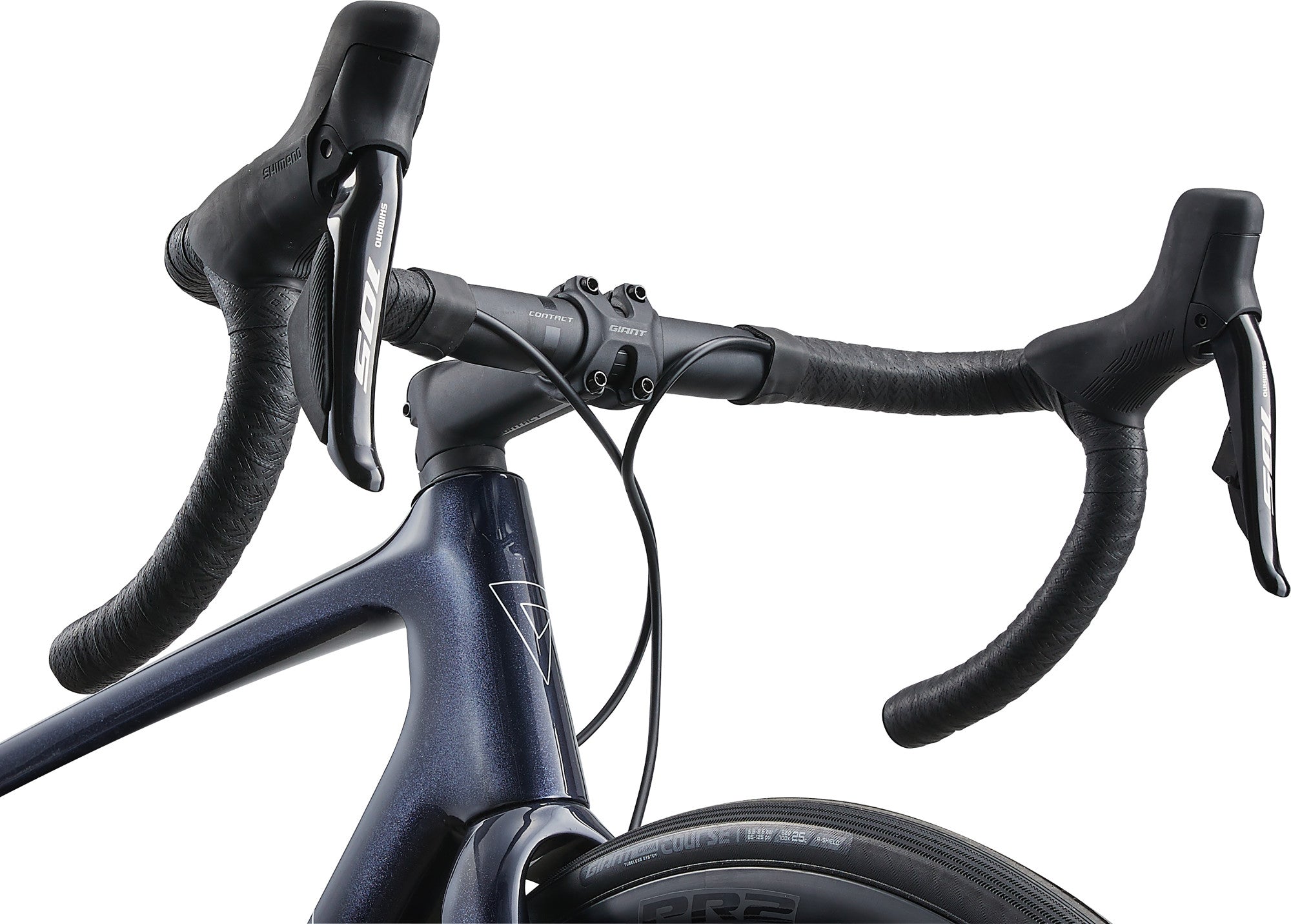

| Shifters | Shimano 105 Di2 |
| Front Derailleur | Shimano 105 Di2 |
| Rear Derailleur | Shimano 105 Di2 |
| Brakes | Shimano 105 Di2 hydraulic, Giant MPH rotors [F]160mm, [R]140mm |
| Brake Levers | Shimano 105 Di2 |
| Cassette | Shimano 105, 12-speed, 11x34 |
| Chain | KMC X12 |

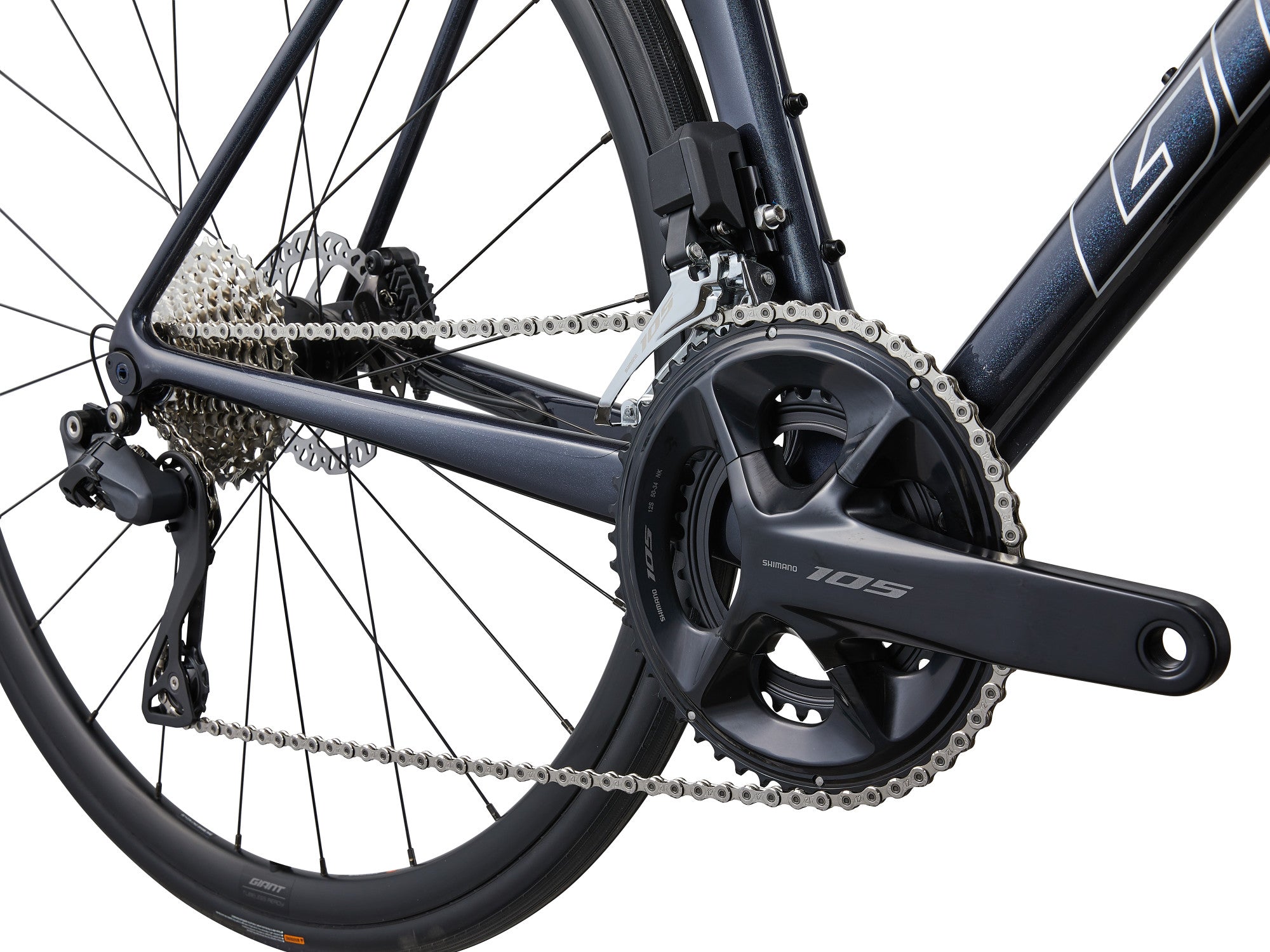

| Crankset | Shimano 105, 34/50 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
| Bottom Bracket | Shimano, press fit |
| Rims | Giant P-R2 Disc wheelset, alloy |
| Hubs | Giant alloy, 12mm thru-axle |
| Spokes | Sapim |
| Tires | Giant Course 1, tubeless, 700x25c (28mm), folding |
| Extras | tubeless prepared, 32mm max tire size |
